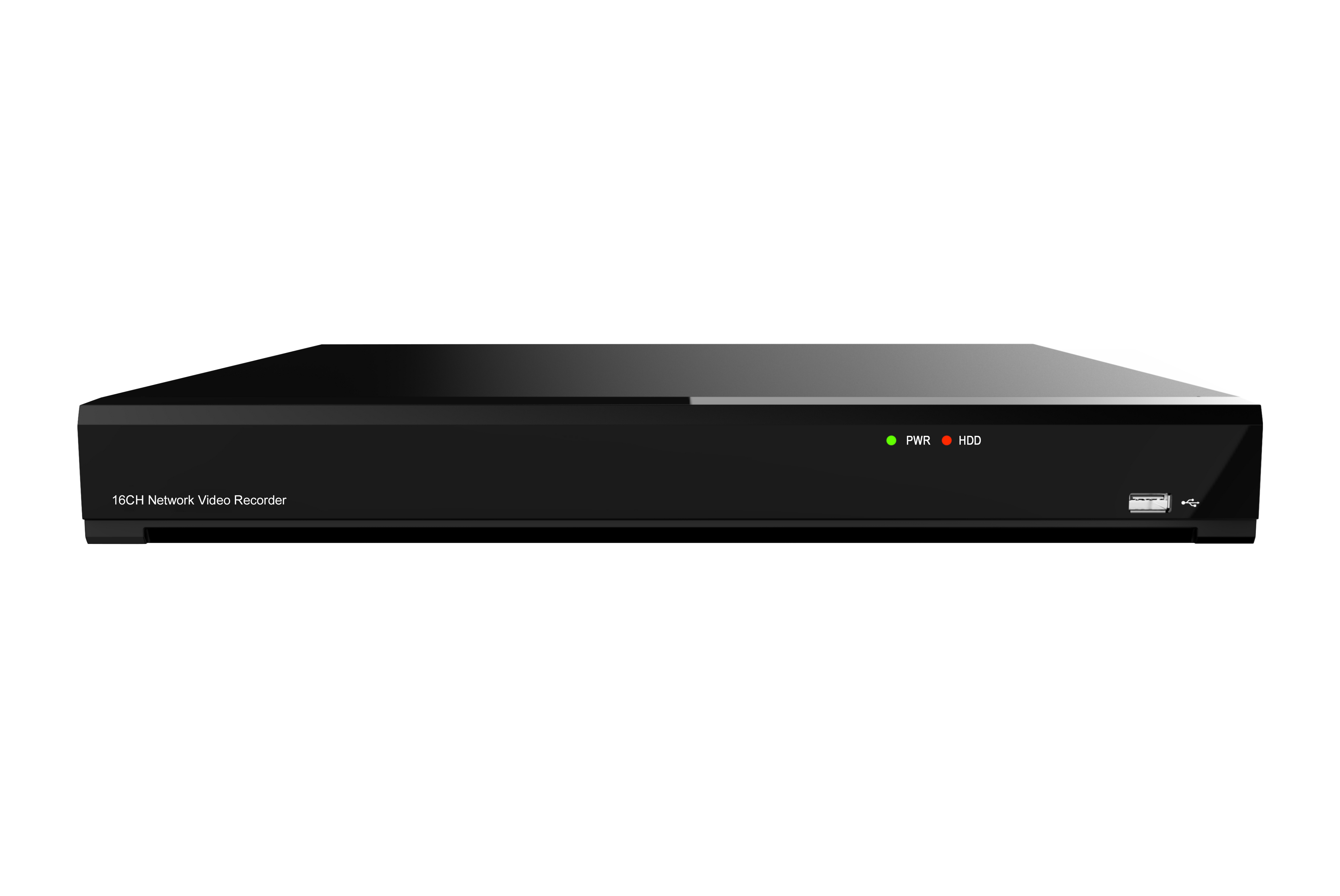

16CH Smart NVR

• Maximum support for 16 channels of 4K IP camera input
• H.265 encoding and decoding
• Supports standard ONVIF protocol
• With 2 Gigabit Ethernet ports
• With 2 internal HDD drive bays, and 1 external e-SATA port
• 8 alarm inputs and 4 alarm outputs
• Supports intelligent analytics such as facial recognition, human detection, vehicle detection, license plate recognition, perimeter intrusion, and line crossing statistics
• Allows remote access from mobile devices and computers
• Supports external alarm devices and features RCA interface for voice intercom

Model Name   ESP-XVR1600

• Inputs Bandwidth       320M
• out Bandwidth              320M
• Performance
• Recording Resolution               12MP/8MP/5MP/4MP/3MP/1080p/720p
• Recording Compression         Audio: G.711A/ G.711U
• Video: H.264/H.265/H.264+/H.265+
• Speed: 12MP:30fps
• 8MP:120fps
• 4MP:240fps
• 2MP:480fps
• Playback: 1080P:480fps
• Max 16CH
• Network　
• WEB     IE10/11
• Safari V12.1 above
• Firefox V.52 above
• Google chrome V.57 above
• Edge V.79 above
• Protocols          TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, UPnP, HTTP, HTTPS
• API        RS API/Onvif (profile S/G/T)
• Voice command          Home Device: Google Assistant, Amazon Alexa

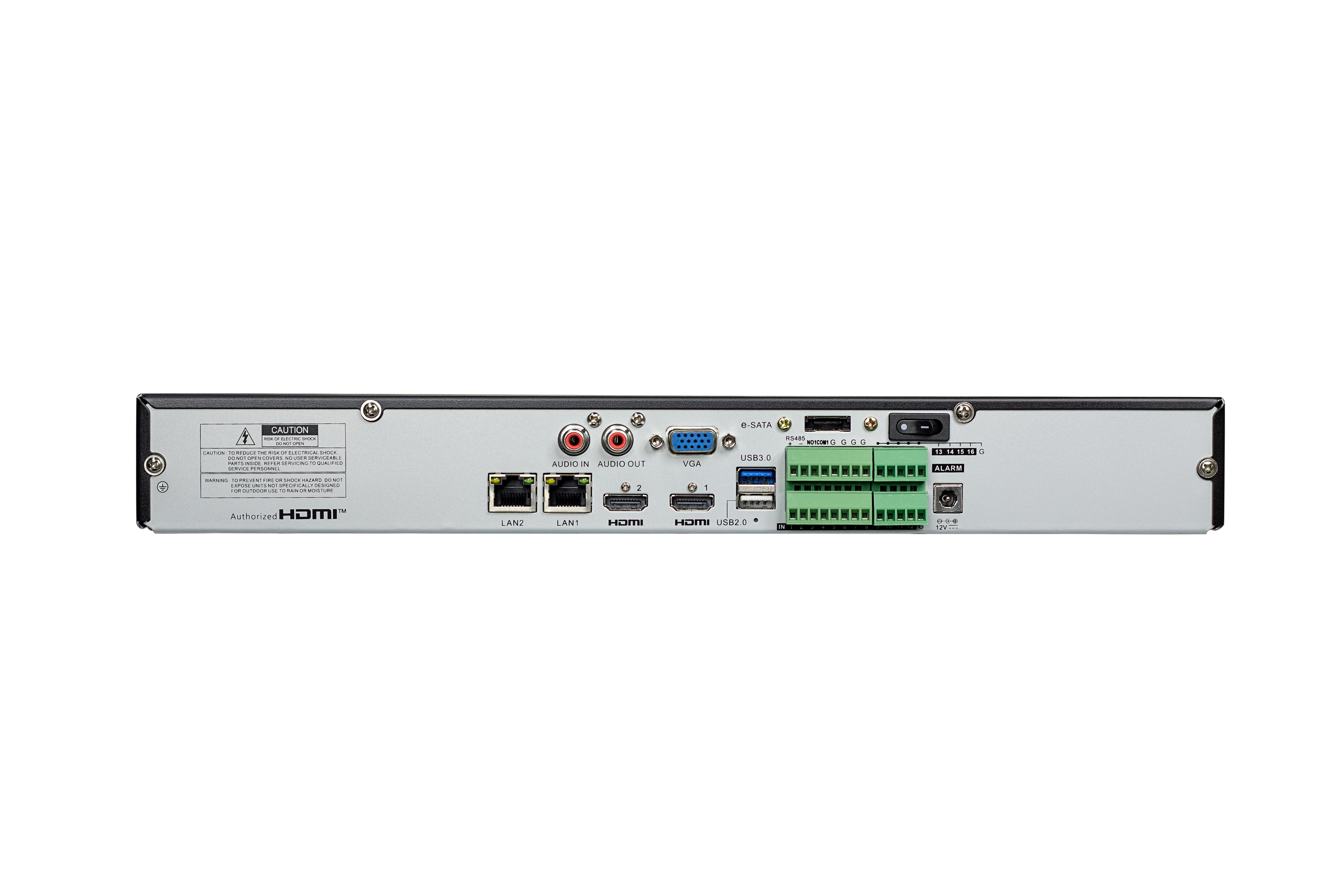

• Interface　
• P/W Reset         YES
• VGA      1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ）
• HDMI   1（1024*768,1280*720,1280*1024,1440*900,1920*1080,2560*1440(2K),3840*2160(4K)
• 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID）
• Async out
• Ethernet            2 RJ45 100/1000 Base-T
• USB      USB2.0*1(front)
• USB3.0*1+USB2.0*1(rear)
• Audio   1 in / 1 out
• E-sata 1
• HDD     2, each up to 12TB
• RS485 1
• Alarm Input/out            8 in /4 out
• General　
• OSD Language English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Hebrew/Turkish/Bulgarian/
• Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish
• Dimension (WxDxH)  378*317*50mm
• Weight                2200g
• Input Voltage/Current               12V/5A
• Power consumption (excluding hard disk) 8W
• Operating Temperature/Humidity     Temperature: -10°C~+50°C (14°F ~ 122°F)
• Humidity: Less than 90%RH
