ESP-XVR1616
AI-powered analytics: Utilizes artificial intelligence to analyze video streams for events like object detection, facial recognition, and license plate recognition.
-
High-resolution recording: Supports various video resolutions, ensuring clear and detailed footage.
-
Remote access: Allows you to monitor and manage the system from anywhere with an internet connection.
-
Scalability: Can be expanded to accommodate more cameras as your surveillance needs grow.
-
Integration: Compatible with a wide range of IP cameras and other surveillance devices.
This type of NVR is well-suited for applications such as:
-
Small businesses: Protecting retail stores, offices, and warehouses.
-
Residential security: Monitoring homes and properties.
-
Schools and universities: Ensuring safety on campuses.
-
Remote monitoring: Keeping an eye on vacation homes, construction sites, or other remote locations.
Video Resolution
8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P)
Video Recording Bandwidth Inputs
320Mbps
Video Recording Bandwidth out
320Mbps
Frame rate
4K:120fps
4MP:240fps
2MP:480fps
AI
Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection /
Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection
Playback
Max 16CH playback
Alarm Input/out
16 in /1 out
HDD
1 SATA HDD, up to 22TB (Enterprise-Class)
PoE
16PoE
Dimension(W×D×H)
378*325.8*66mm
Operating Temperature/Humidity
Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH
| Model Name |
ESP-SVR1616HA-P-E1 |
|
| Video |
Resolution |
![]() 8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P) |
| Recording Bandwidth |
Inputs |
320M |
| out |
320M |
| Performance |
|
| Live/Playback |
Compression |
Audio: G.711a
Video: H.264/H.265、H.264+/H.265+ |
| Frame rate |
4K:45fps
4MP:90fps
2MP:180fps |
| Event |
MD (Sensitivity Level 1~8) |
| Video loss |
Beep, Email,
Push notification to Mobile APP |
| Playback function |
Fast forward / backward (2x, 4x, 8x,16x) |
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback |
Max 16CH playback |
|
Fisheye |
Support |
| UI/Monitoring |
Local |
UI5.0 |
| WEB |
IE10/11
Safari V12.1 above
Firefox V.52 above
Google Chrome V.57 above
Edge V.79 above |
| Mobile viewer |
ESP Cloud |
| Push Notification |
TUTK/RS |
| AI |
|
Face Detection |
| Pedestrian Detection |
| Vehicle Detection |
| Cross Counting |
| Heat Map |
| Crowd Density Detection |
| Perimeter Intrusion Detection |
| Line Crossing Detection |
| Queue Length Detection |
| License Plate Detection |
| Rare Sound Detection |

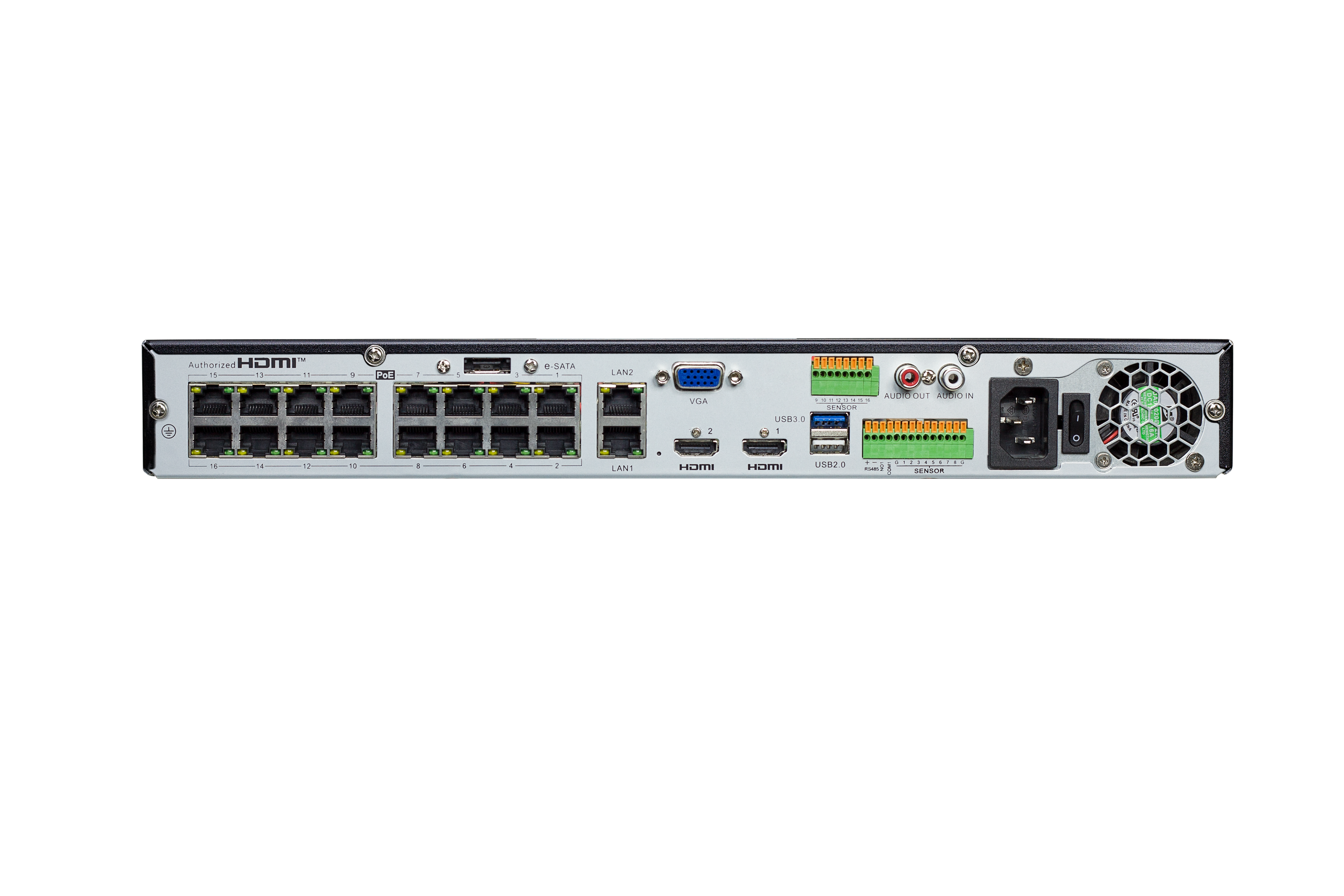

| Interface |
|
| P/W Reset |
|
YES |
| Monitors |
HDMI |
1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080,
1600*1200，1920*1200, 3840*2160/EDID）Async out |
|
POE |
16*RJ45、 802.3at/af |
|
Ethernet |
1 RJ45 1000 Base-T |
| USB |
USB2.0*1(front)
USB3.0*2(rear) |
| Audio out |
1 |
| E-sata |
1 |
| HDD |
1 SATA HDD, up to 18TB (Enterprise-Class) |
|
| Line in |
1 |
| RS485 |
1 |
| Alarm Input/out |
16in /1out |
| General |
|
| OSD Language |
English/French/Spanish/Portuguese/German/Italian/Greek/
Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic
Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish |
| Mechanical design |
Dimension (WxDxH) |
378*325.8*66mm |
380*340*50mm |
| Electrical |
Input Voltage/Current |
52VDC / 280W |
| Power consumption (excluding hard disk) |
10W |
| Environmental |
Operating Temperature/Humidity |
Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH |
|
8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P)
