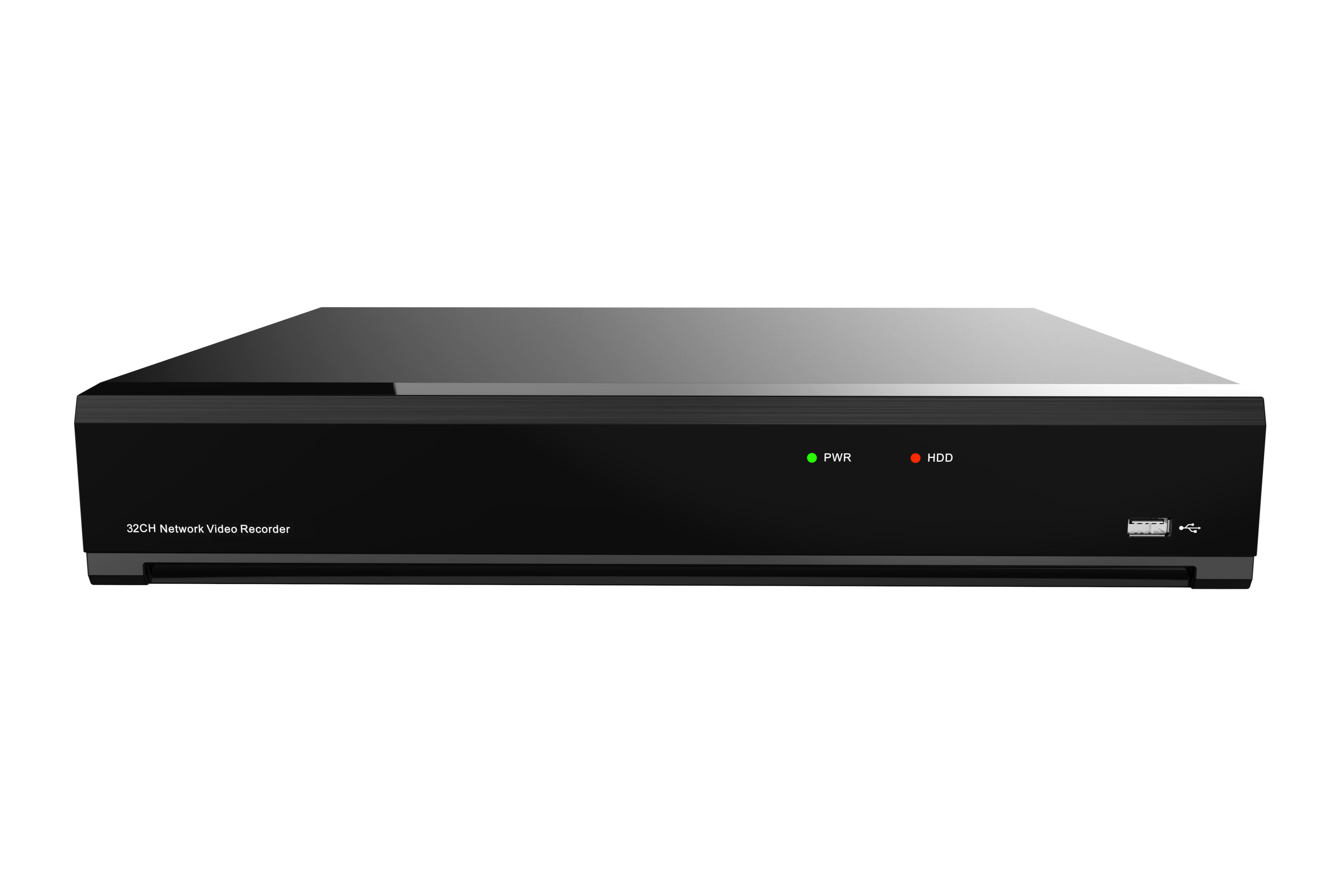

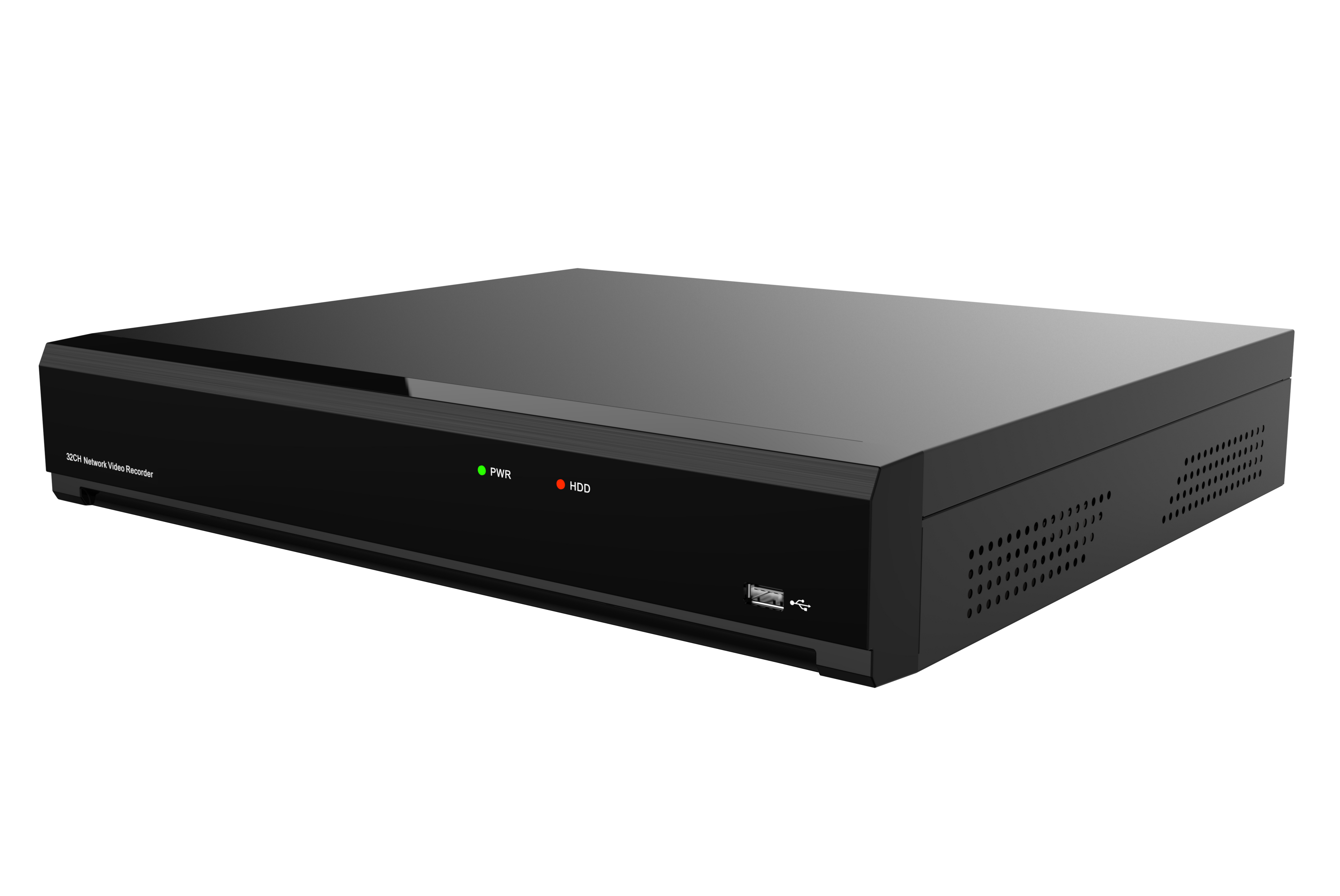

32CH Smart NVR

ESP 32CH Smart NVR 2 HDD Slots

ESP-XVR3200

Video Resolution


12MP, 8MP,5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)

Video Recording Bandwidth Inputs


640M

Video Recording Bandwidth out


640M

Frame rate


4K:240fps
4MP:480fps
2MP:960fps

AI

Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection /
Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection

Playback

Max 16CH playback

Alarm Input/out

16 in /1 out

HDD
2 SATA HDD, up to 22TB

Dimension(W×D×H)

440*460*89mm

Operating Temperature/Humidity
Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH

Model Name		ESP-XVR3200
Video	Resolution	8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P)
Recording Bandwidth	Inputs	640M
	out	640M
Performance
Live/Playback	Compression	Audio: G.711a Video: H.264/H.265、H.264+/H.265+
	Frame rate	4K:240fps 4MP:480fps 2MP:960fps
	Event	MD (Sensitivity Level 1~8)
		Video loss
		Beep, Email, Push notification to Mobile APP
	Playback function	Fast forward / backward (2x, 4x, 8x,16x)
		Slow forward (1/2x, 1/4x, 1/8x,1/16x)
	Playback	Max 16CH playback
	Fisheye	Support
UI/Monitoring	Local	UI5.0
	WEB	IE10/11 Safari V12.1 above Firefox V.52 above Google Chrome V.57 above Edge V.79 above
	Mobile viewer	ESP Cloud
	Push Notification	TUTK/RS
AI		Face Detection
		Pedestrian Detection
		Vehicle Detection
		Cross Counting
		Heat Map
		Crowd Density Detection
		Perimeter Intrusion Detection
		Line Crossing Detection
		Queue Length Detection
		License Plate Detection
		Rare Sound Detection

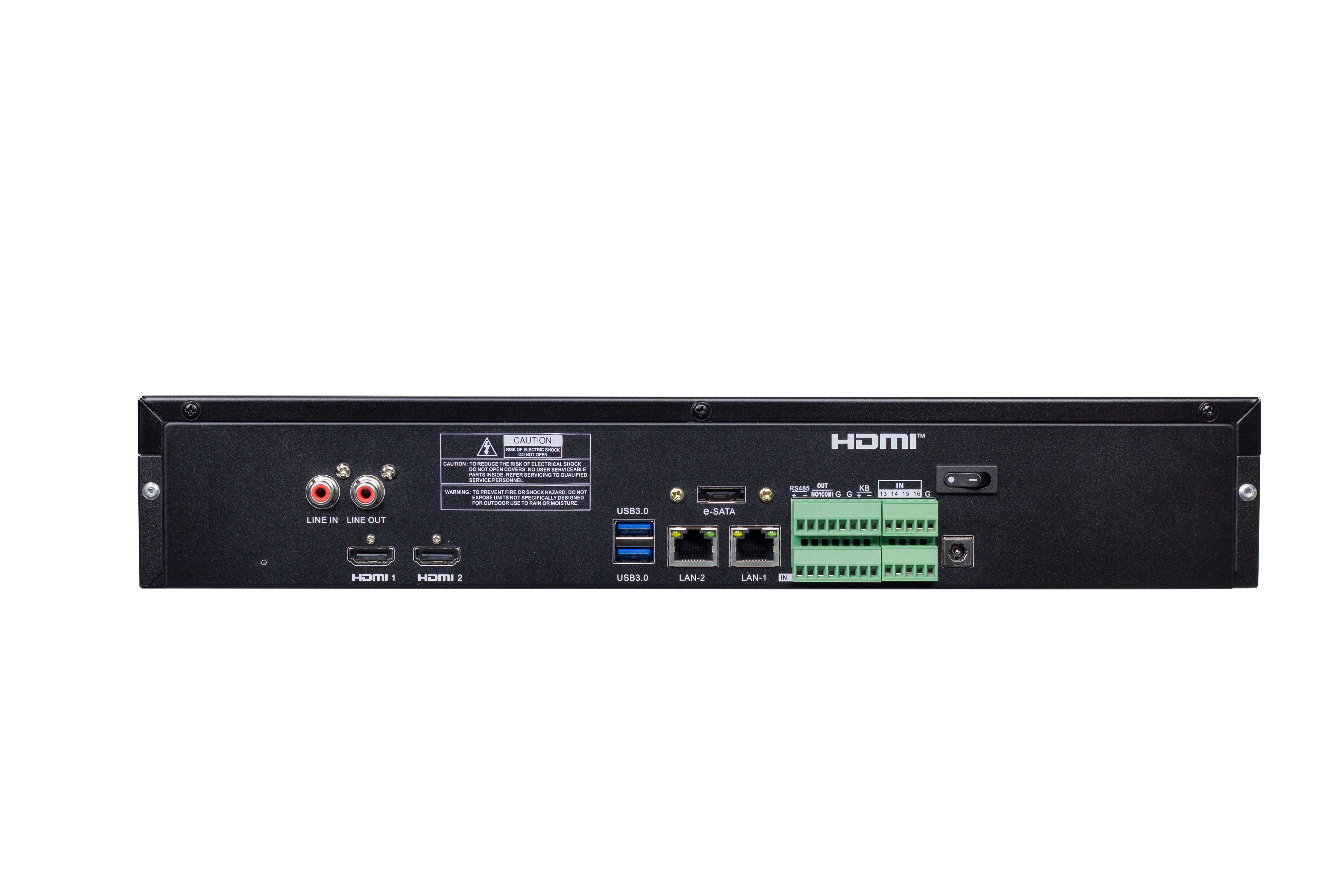

Interface
P/W Reset		YES
Monitors	HDMI	2（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1600*1200, 1920*1200, 3840*2160）EDID Sync out
	POE	16*RJ45、 802.3at/af
	Ethernet	2 RJ45 1000 Base-T
	USB	USB2.0*1(front) USB3.0*2(rear)
	Audio out	1
	E-Sata	1
	HDD	2 SATA HDD, up to 22TB (Enterprise-Class)
	Line in	1
	RS485	1
	Alarm Input/out	16in /1out
General
OSD Language		English/French/Spanish/Portuguese/German/Italian/Greek/ Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish
Mechanical design	Dimension (WxDxH)	378*325.8*66mm	380*340*50mm
Electrical	Input Voltage/Current	12VDC
	Power consumption (excluding hard disk)	10W
Environmental	Operating Temperature/Humidity	Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH
