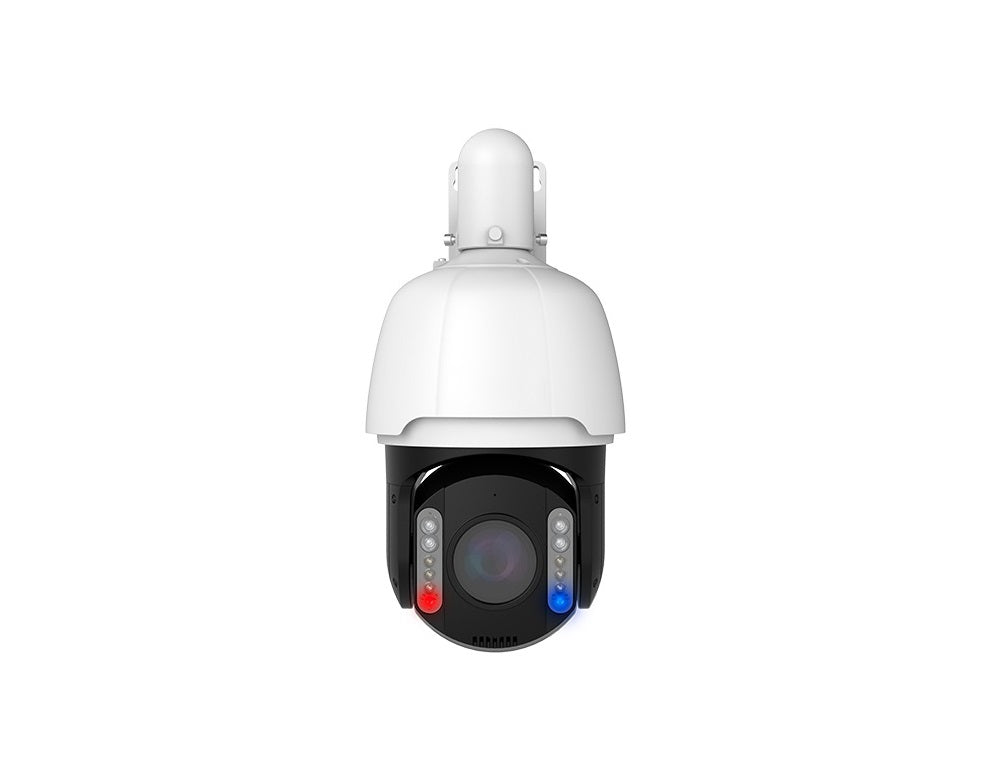

4K 37X PTZ Dome Camera

Showcase your message here
$2,689.00
$2,689.00
4K 37X PTZ Dome Camera image 0

Product details

INFO BLOCK TITLE

ESP 4K Pro Series PTZ 37X Motorized Zoom Dome Camera ESP-PTZ8537X-2FCDN
Edge AI Features:
Camera
Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 8MP 3840(H)x2160(V)
Min. Illumination Color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0 lux with light
Shutter Speed 1/5s to 1/20000s
Day & Night Auto Switch
Zoom 37 × optical, 16 × digital
Lens
Focal Length 5.5 mm to 202 mm
Angle of View Horizontal: 60° to 2.31°, Vertical: 35.5° to 1.3°, Diagonal: 67.5° to 2.65°
Aperture Max. F1.6
Focus Auto, semi-auto, manual
Illuminator
Supplement Light Range White light: up to 25 m IR: up to 200m
Supplement Light Type Hybrid (IR and White Light)
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -20° to 90° (auto flip)
Pan Speed configurable from 0.6° to 200°/s; preset speed: 200°/s
Tilt Speed configurable from 0.6° to 90°/s; preset speed 100°/s
Presets 255
Patrol Scan 4 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-Off Memory Yes
3D Positioning Yes
Video
Mainstream 50 Hz:  25 fps (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/ 1920x1080/1280x960/1280x720); 60 Hz:  30 fps (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/ 1920x1080/1280x960/1280x720);
Sub-Stream 50 Hz: 25 fps (1920x1080/1280x720/640x480/320x240); 60 Hz: 30 fps (1920x1080/1280x720/640x480/320x240);
Third Stream 50 Hz: 25 fps (640x480/320x240); 60 Hz: 30 fps (640x480/320x240);
Video Compression Mainstream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG; Third stream: H.265+/H.265/H.264+/H.264
Video Bit Rate 8kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region Of Interest (ROI) 8
Audio
Audio Compression G.711A/G.711U
Network
Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP
API Onvif (Profile M, Profile S, Profile G, Profile T), Http API
Simultaneous Live View Up to 14 channels
User/Host Up to 15 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, control timeout settings
Client VMS
Web Browser IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Day/Night Switch Day, Night, Image, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
Digital Image Stabilization Yes
Image Settings Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser
Privacy 4 privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 1.5TB (not included)
Alarm 1 input, 1 output
Audio 1 input (line in),1 output (line out) ；Built-in Microphone and Speaker
Reset yes
Rs485 Interface Control by Joystick controller (Only used PTZ function)
Event
Basic Event Motion detection, video tampering alarm, alarm input and output, Soud detection
Deep Learning Function Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Intrusion detection, Region entrance detection, Region exiting detection, License plate Recognition
Smart Tracking auto-tracking
Alarm Linkage Upload to FTP, send email, trigger alarm output, trigger recording
General
Power 36VDC/24VAC/POE++ ,   max. 44.80W
Operating Condition -30 °C to 60 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Material Metal
Dimension Ø 206.4 mm × 337.8 mm (Ø 8.13" × 13.3")
Weight Approx. 5.27 kg (11.6lb)
Approval
Protection IP67, IK10
