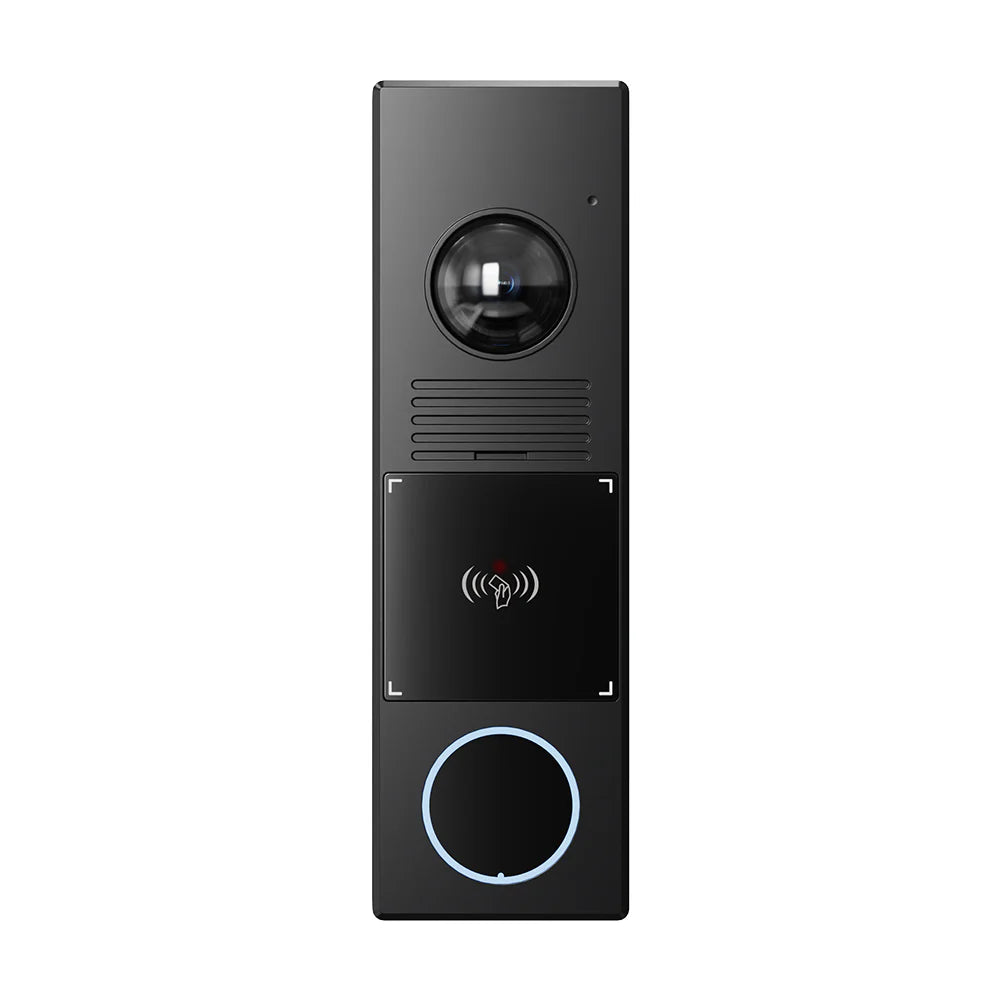

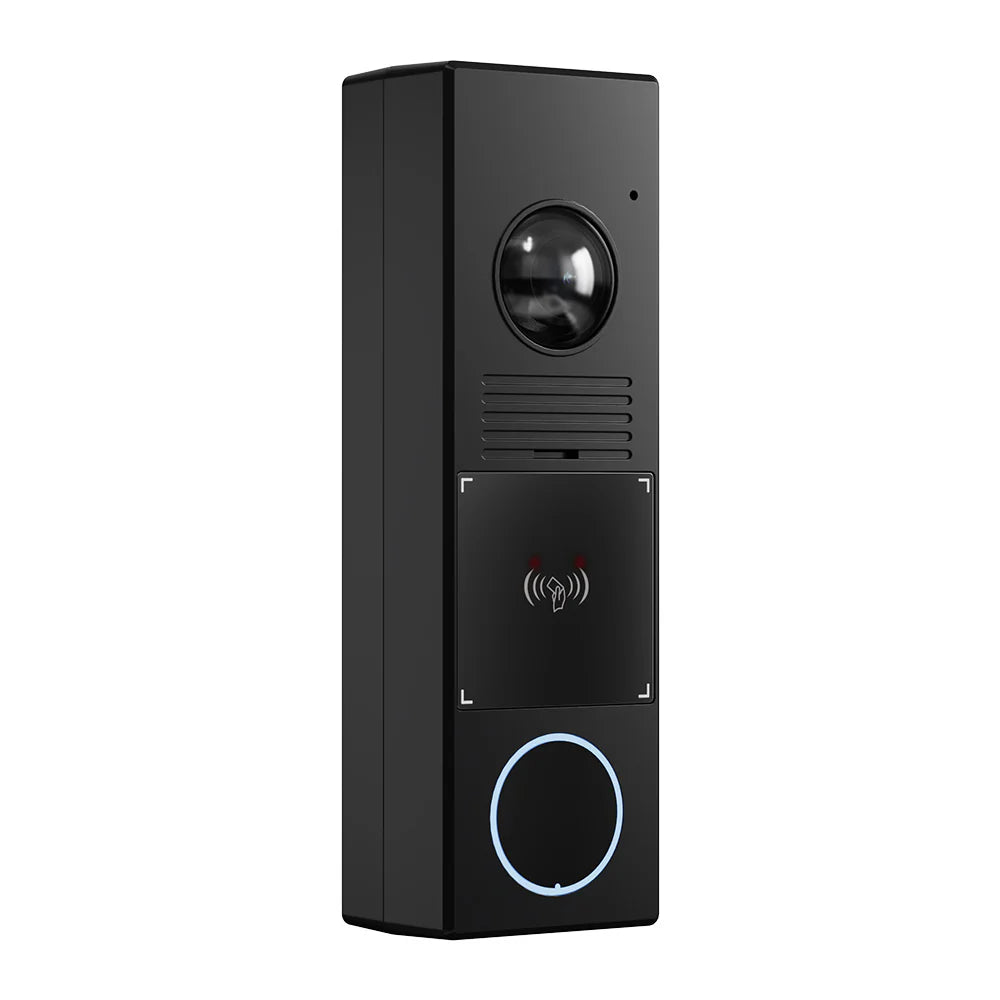

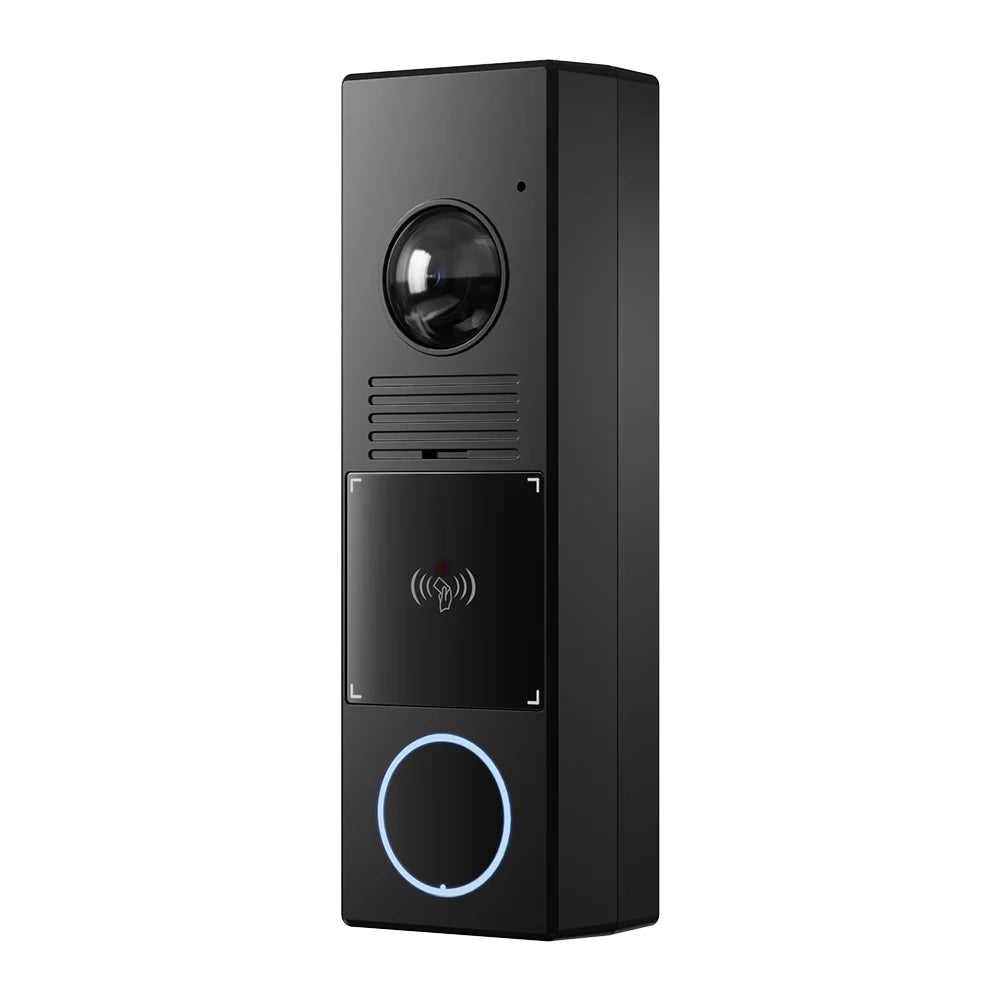

4K Commercial Video Intercom

Camera

• Effective Pixels      3840*2160  (16:9)   1/2.7”
• Resolution               8 MP
• Signal System        PAL/NTSC
• Focal Length           1.8mm
• Aperture    F2.0
• Viewing Angle        H: 180° V:102° D:180°
• Minimum Illumination     0 Lux with IR ON
• White Balance      Auto
• DNR             Support
• AGC             Auto
• BLC              Support
• WDR            Support
• Video Compression         H.265+/H.265/ H.264+/H.264/MJPEG (Sub Stream)
• Bit Rate      8Kbps ~ 16Mbps
• Video Resolution 8MP(3840X2160),6MP(3072x1728),5MP(2880x1620),4MP(2560X1440),3MP(2304x1296),1080P(1920x1080),720P(1280x720)
• Audio Compression          G711A/U
• Interfaces
• Network Interface               IEEE802.3af, 100M PoE
• TF Card      Support TF Card, up to 1TB
• RS-485       Support
• Wiegand Port         Support
• Alarm Input             1
• Alarm Output         1
• Door sensor input               1
• Exit Button               1
• Lock Out(Door Control)  1
• Tamper Alarm        Support
• Doorbell Button   Support
• Microphone            1, Pickup Range up to 8 Meters
• Speaker      Volume Max. 93 ± 3 dB
• IR Light Distance 5 Meters
• Functions
• Remote Monitoring            Web / CMS / APP
• Online Connection             Supports simultaneous monitoring for up to 10 users
• Supports multi-stream real time transmission
• Network Protocol UDP, IPv4, DHCP, NTP, RTSP, DDNS, SMTP, UPnP, HTTPS, HTTP
• Interface Protocol               ONVIF，SIP
• DTMF           Support
• Intelligent Analytics           Pedestrian / Face recognition
• Unlock Methods Card / NFC / APP / Face recognition / QR Code
• Card Type Mifare card /Desfire card/FM1208 Card
• Card Reading Frequency                13.56MHz
• Users           3,000
• Face             3,000
• Card Capacity       30,000
• Event Capacity     150,000
• General
• Power Input             PoE or DC12V, 1A
• Power Consumption         PoE: 9.86W, 12VDC: 8.03W
• Working Temperature        -30 ~55 , Humidity: less than 95% (non-condensing)
• Casing        Metal
• Dimension               167 ×52 ×39mm
• Weight (net)            316g
• IP Rating    IP66, IK08, NEMA4X
