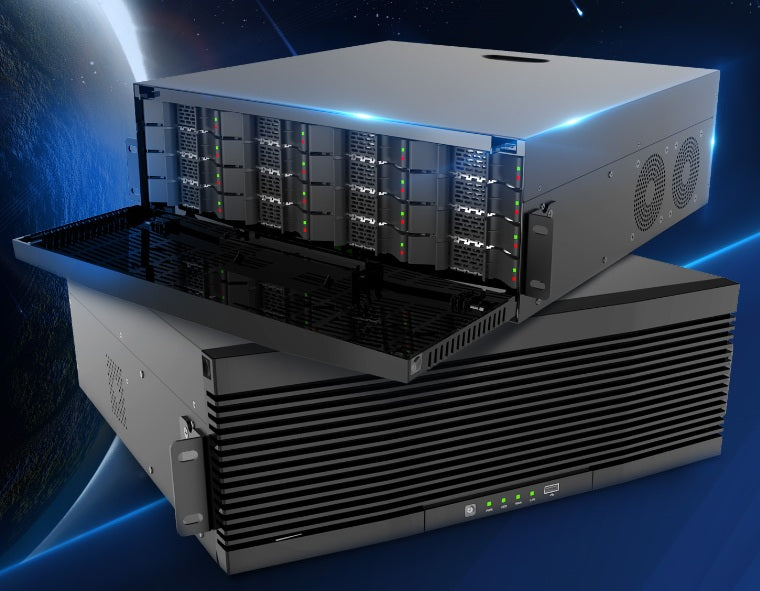

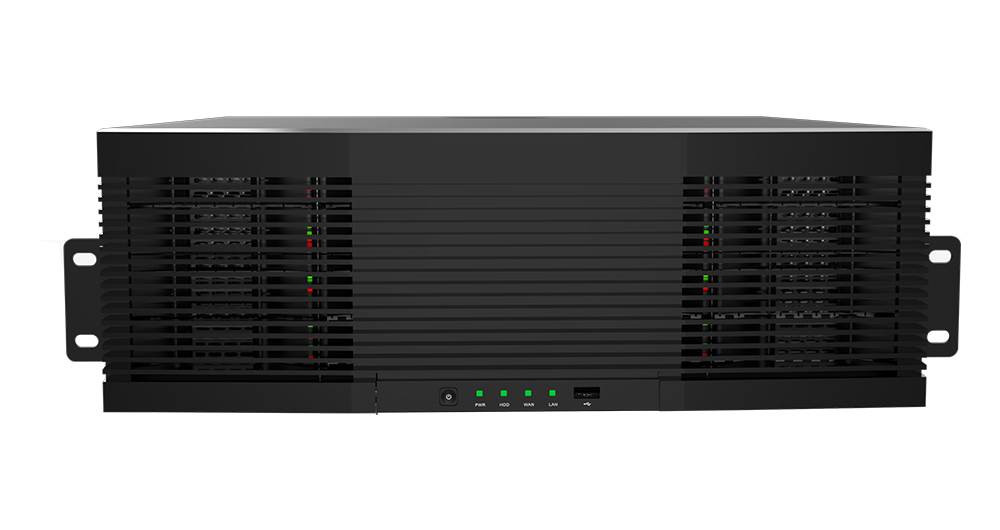

64CH 12MP H.265+ Smart Rackmount NVR Hot Swap (16 HDD Max Capacity)

Showcase your message here
$4,499.00
$4,499.00
64CH 12MP H.265+ Smart Rackmount NVR Hot Swap (16 HDD Max Capacity) image 0
64CH 12MP H.265+ Smart Rackmount NVR Hot Swap (16 HDD Max Capacity) image 1

Product details

INFO BLOCK TITLE

ESP-XVR6400-16


Video Resolution


12MP, 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)

Video Recording Bandwidth Inputs


1024M

Video Recording Bandwidth out


800M

Frame rate


4K:240fps
4MP:480fps
2MP:960fps

AI - Compatible with ESP cameras

Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection /
Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection

Playback

Max 16CH playback

Alarm Input/out

16 in /4 out

RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10

HDD
16 SATA HDD, up to 22TB (Enterprise-Class)

Dimension(W×D×H)

440*460*149mm

Operating Temperature/Humidity
Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH










































































































































































































Model Name ESP-XVR6400-16
Video Resolution 12MP, 8MP, 5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P)
Recording Bandwidth Inputs 1024M
out 800M
Performance
Live/Playback Compression Audio: G.711a
Video: H.264/H.265/H.264+/H.265+
Frame rate 4K:240fps
4MP:480fps
2MP:960fps
Event MD (Sensitivity Level 1~8)
Video loss
Beep, Email,
Push notification to Mobile APP
Playback function Fast forward / backward (2x, 4x, 8x,16x)
Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback Max 16CH playback
RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
Fisheye Support
UI/Monitoring Local UI5.0
WEB IE10/11
Safari V12.1 above
Firefox V.52 above
Google chrome V.57 above
Edge V.79 above
Mobile viewer P2P
Push Notification TUTK/RS
AI Face Detection
Pedestrian Detection
Vehicle Detection
Cross Counting
Heat Map
Crowd Density Detection
Perimeter Intrusion Detection
Line Crossing Detection
Queue Length Detection
License Plate Detection
Rare Sound Detection
Interface
P/W Reset YES
Monitors HDMI 3（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080,
2560*1440, 3840*2160/7680*4320/EDID）Async out
*If the output resolution of HDMI 1 is set to 8K,
the maximum output resolution of HDMI 3 and 4 will be limited to 1080P,
and HDMI 2 will be disabled.
1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID）
A sync out
Ethernet 2 RJ45 1000 Base-T
USB USB2.0*1(front)
USB3.0*2(rear)
Audio out 1
E-Sata 1
HDD 16 SATA HDD, up to 22TB (Enterprise-Class)
Line in 1
RS232 1*RJ45
RS485 1
Alarm Input/out 16in /4out
General
OSD Language English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/
Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish
Mechanical design Dimension (WxDxH) 440*460*149mm
Electrical Input Voltage/Current ATX 250W
Power consumption (excluding hard disk) 8W
Environmental Operating Temperature/Humidity Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH
