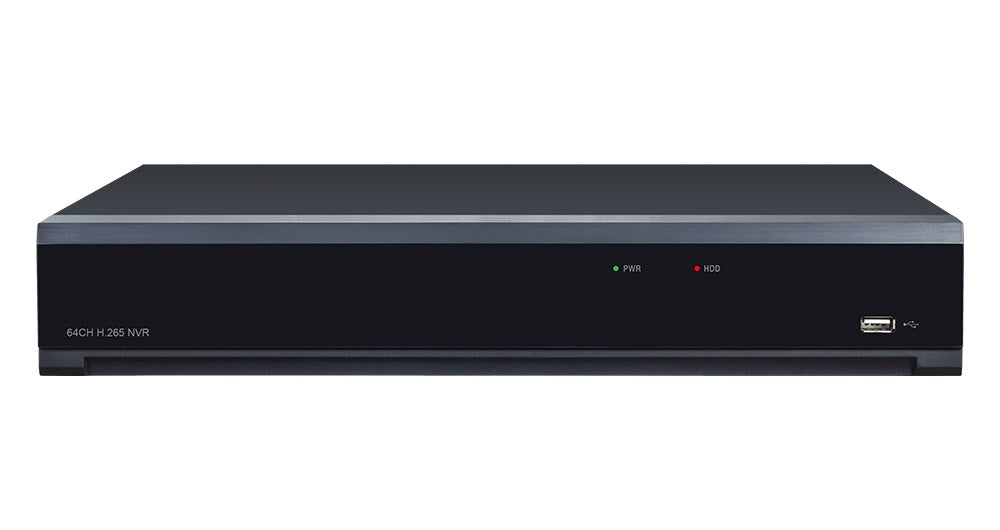

64CH Smart NVR

• High-resolution recording: Supports various video resolutions, including 4K, for clear and detailed footage.
• Intelligent analytics: Utilizes AI algorithms to analyze video streams for specific events or anomalies.
• Scalability: Can be expanded to accommodate more cameras as your surveillance needs grow.
• Integration: Compatible with a wide range of IP cameras and other surveillance devices.
• Remote access: Allows you to monitor and manage the system from anywhere with an internet connection.

This type of NVR is suitable for mid-sized surveillance systems in applications such as:

• Retail stores: Protecting customers, employees, and assets.
• Small businesses: Ensuring security and monitoring operations.
• Schools and universities: Monitoring campus areas and ensuring student safety.
• Residential communities: Enhancing security for homes and common areas.

Video Resolution 8MP,5MP, 3MP, 2MP (1080P),1.3MP (960P),1.0MP (720P) Video Recording Bandwidth Inputs 640M Video Recording Bandwidth out 640M Frame rate 4K:240fps 4MP:480fps 2MP:960fps AI Face Detection / Pedestrian Detection / Vehicle Detection / Cross Counting / Heat Map / Crowd Density Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Length Detection / License Plate Detection / Rare Sound Detection Playback Max 16CH playback Alarm Input/out 16 in /1out HDD  4 SATA HDD, up to 18TB (Enterprise-Class) Dimension(W×D×H)  378*325.8*66mm Operating Temperature/Humidity Temperature: -10°C~+50°C (14°F ~ 122°F) Humidity: Less than 90%RH

Model Name		ESP-SVR6400-E4
Video	Resolution	8MP,5MP, 3MP ,2MP (1080P),1.3MP (960P),1.0MP (720P)
Recording Bandwidth	Inputs	640M
	out	640M
Performance
Live/Playback	Compression	Audio: G.711a Video: H.264/H.265/H.264+/H.265+
	Frame rate	4K:240fps 4MP:480fps 2MP:960fps
	Event	MD (Sensitivity Level 1~8)
		Video loss
		Beep, Email, Push notification to Mobile APP
	Playback function	Fast forward / backward (2x, 4x, 8x,16x)
		Slow forward (1/2x, 1/4x, 1/8x,1/16x)
	Playback	Max 16CH playback
RAID	RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
	Fisheye	Support
UI/Monitoring	Local	UI5.0
	WEB	IE10/11 Safari V12.1 above Firefox V.52 above Google Chrome V.57 above Edge V.79 above
	Mobile viewer	ESP Cloud
	Push Notification	TUTK/RS
AI		Face Detection
		Pedestrian Detection
		Vehicle Detection
		Cross Counting
		Heat Map
		Crowd Density Detection
		Perimeter Intrusion Detection
		Line Crossing Detection
		Queue Length Detection
		License Plate Detection
		Rare Sound Detection
Interface
P/W Reset		YES
Monitors	HDMI	3（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1600*1200， 1920*1200, 3840*2160/7680*4320/EDID）Async out *If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled.
		1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID） Async out
	Ethernet	2 RJ45 1000 Base-T
	USB	USB2.0*1(front) USB3.0*2(rear)
	Audio out	1
	E-Sata	1
	HDD	4 SATA HDD, up 18TB (Enterprise-Class)
	Line in	1
	RS232	1*RJ45
	RS485	1
	Alarm Input/out	16in /1out
General
OSD Language		English/French/Spanish/Portuguese/German/Italian/Greek/ Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/ Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish
Mechanical design	Dimension (WxDxH)	378*325.8*66mm
Electrical	Input Voltage/Current	ATX 250W
	Power consumption (excluding hard disk)	8W
Environmental	Operating Temperature/Humidity	Temperature: -10°C~+50°C (14°F ~ 122°F) Humidity: Less than 90%RH
