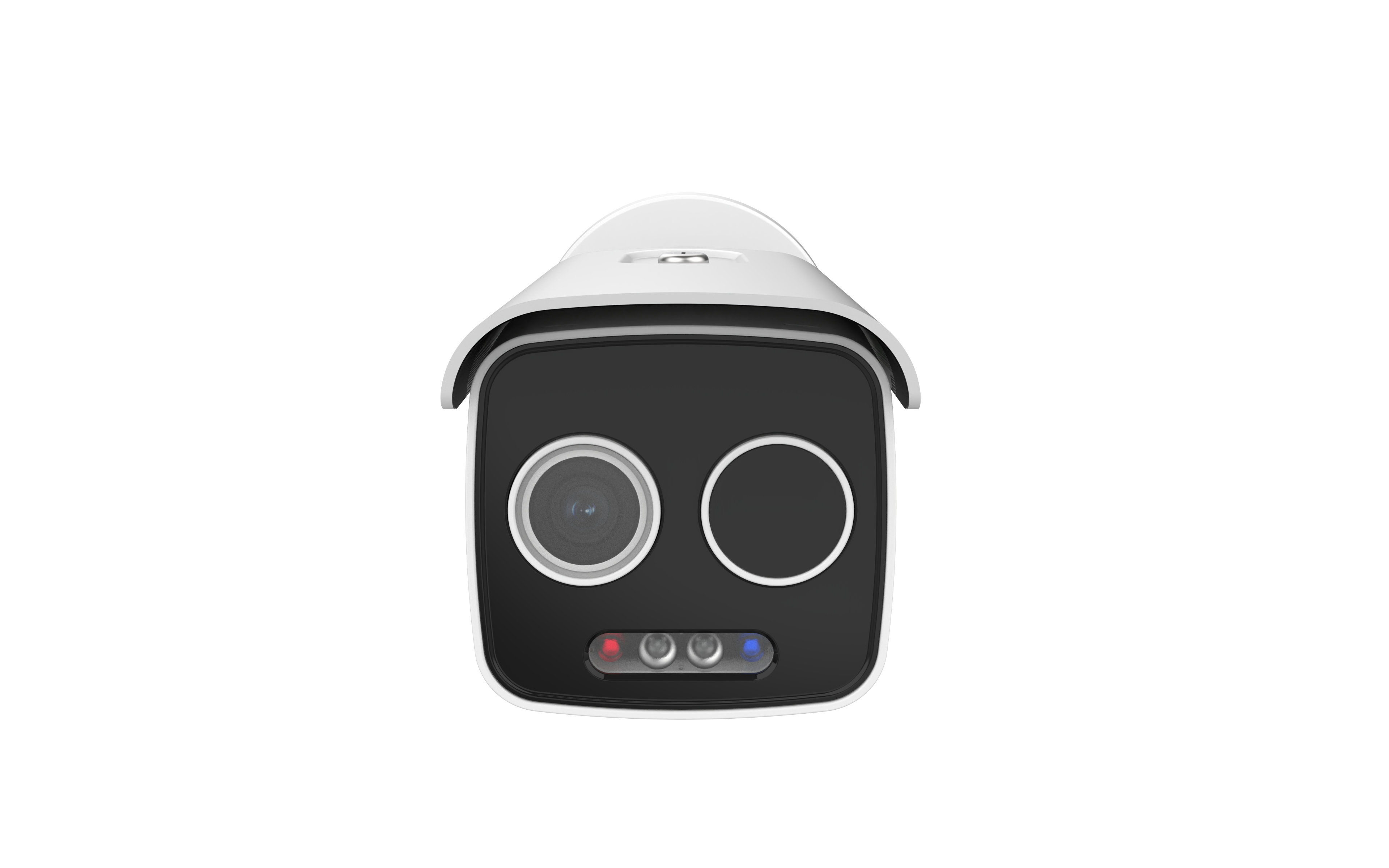

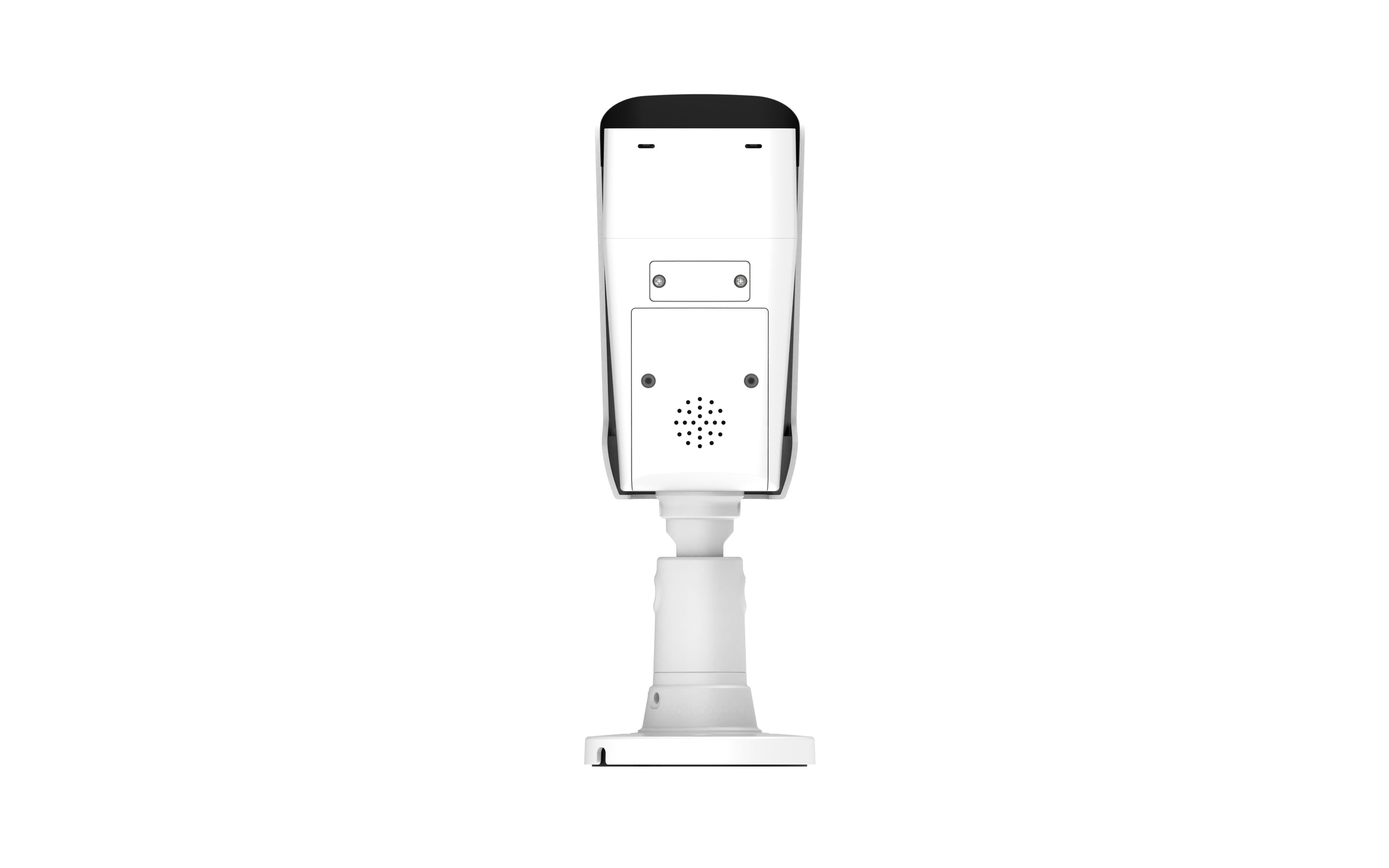

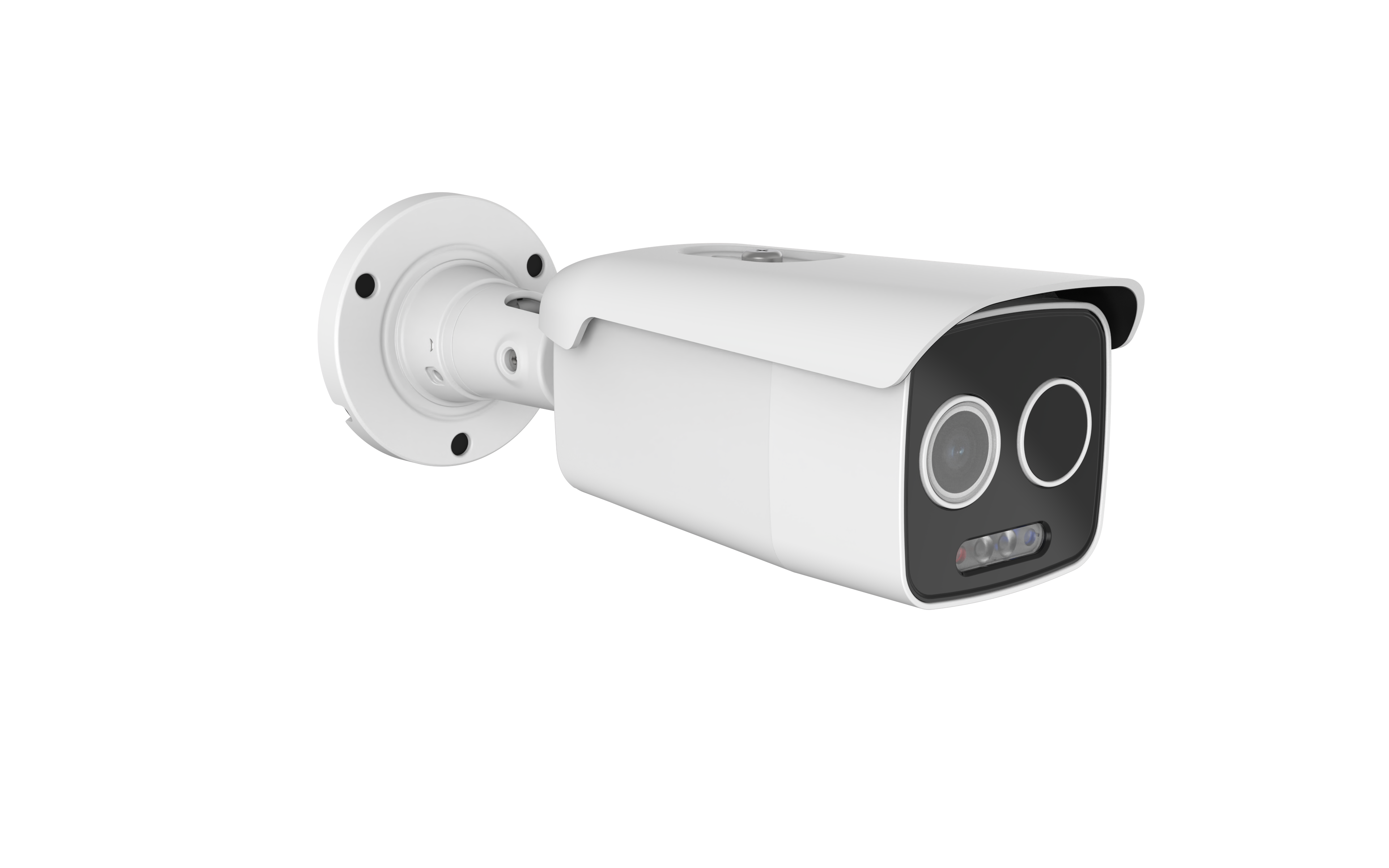

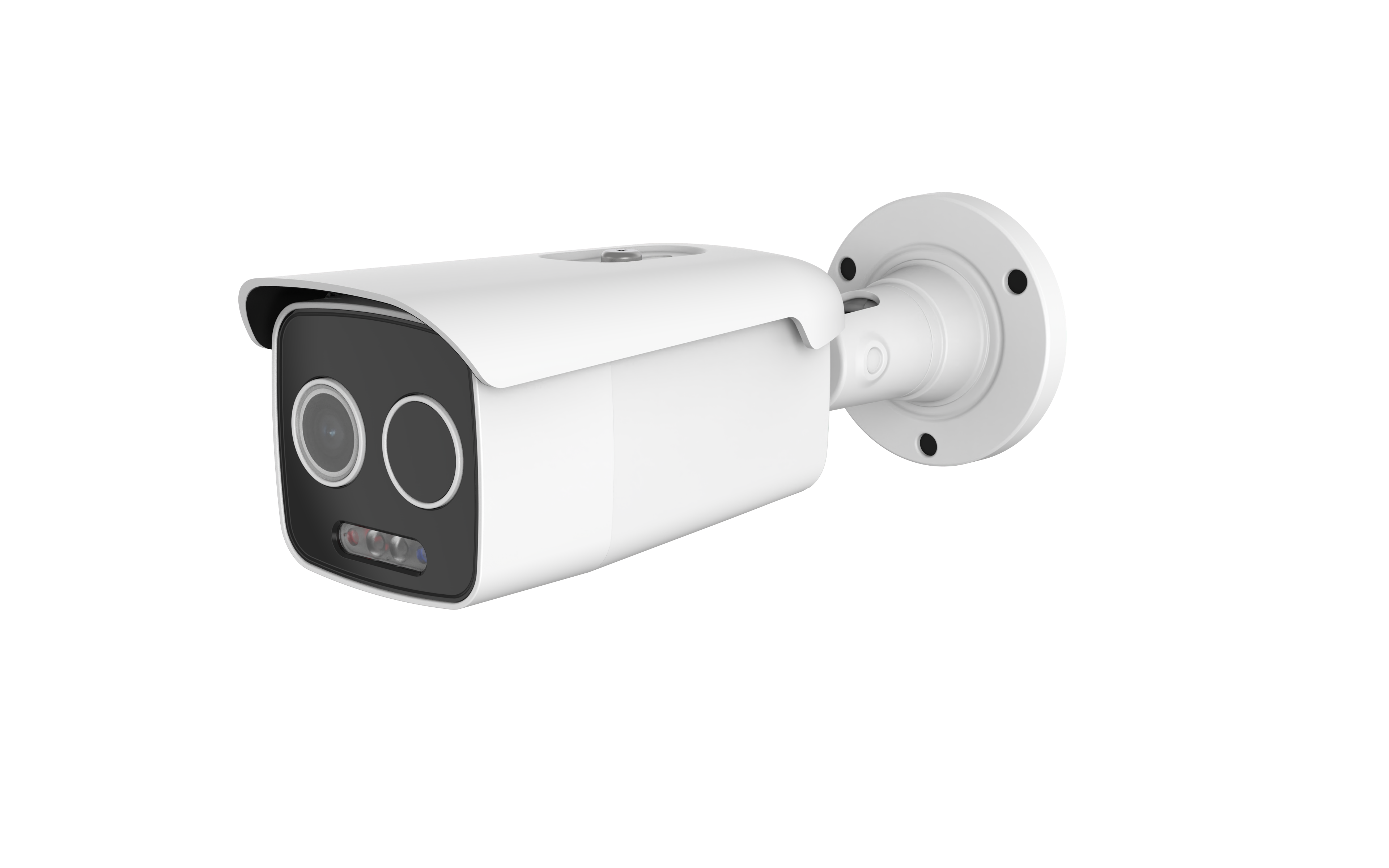

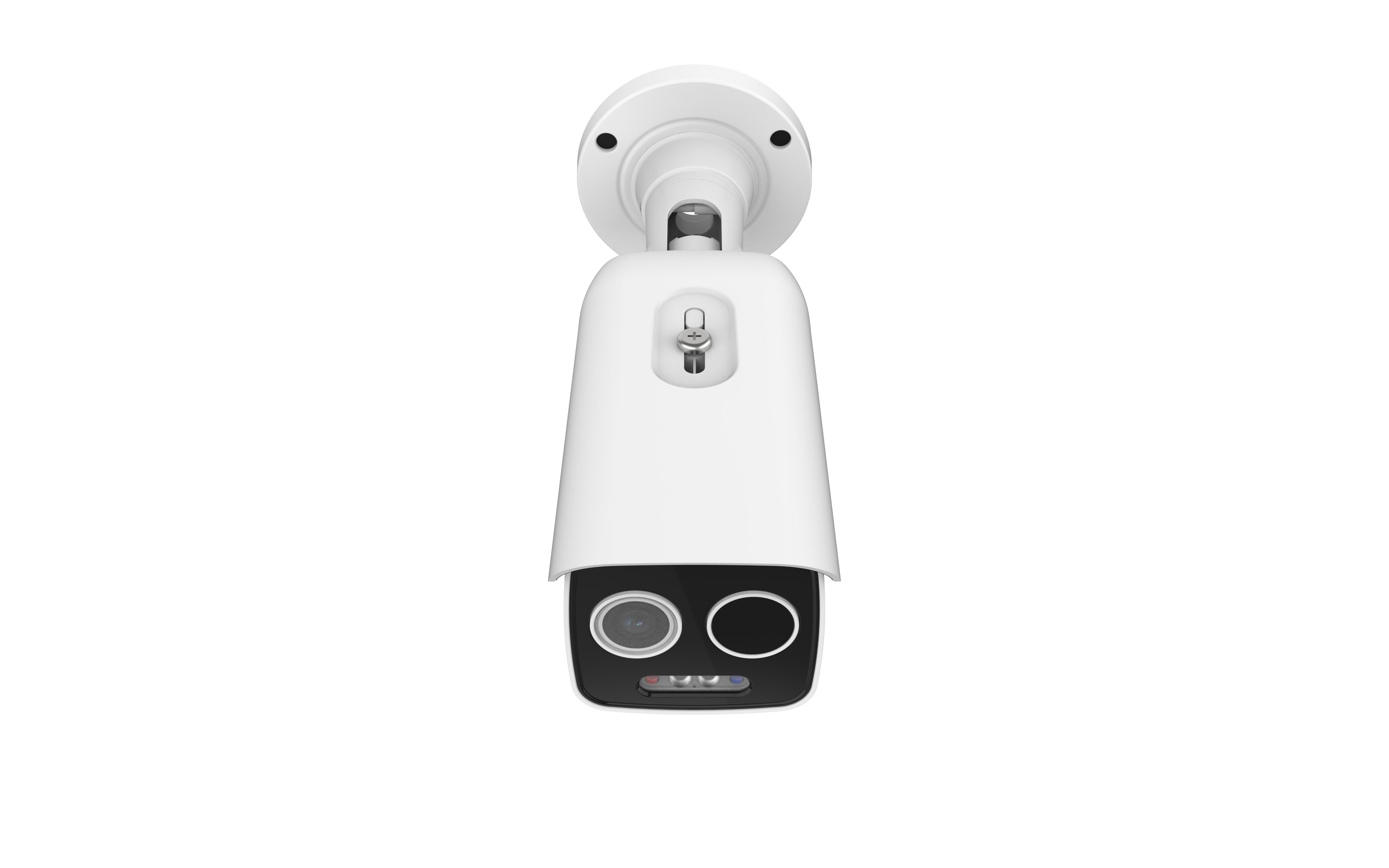

Thermal Security Camera Dual Lens SMD Fire Detection
Showcase your message here
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
Product details
INFO BLOCK TITLE
Key Optical Features:
- Intrusion: Detects objects entering or leaving a defined area.
- Region Entrance/Exiting: Monitors the movement of objects into or out of specific regions.
- LCD: Liquid Crystal Display for real-time visualization of thermal images.
- PD/VD: Pixel Density and Video Dynamic Range, which influence image quality and detail.
- SOD: Standoff Distance, the maximum distance at which the sensor can effectively detect objects.
- CC: Contrast Control for adjusting image contrast.
- CD: Color Depth for the number of colors used to represent temperature variations.
- QD: Quantum Dot Technology for enhanced image quality and color accuracy.
- Heat MAP: Visual representation of temperature distribution in a scene.
- RSD: Radiometric Sensitivity Detection for accurate temperature measurements.
- FD: Frame Rate, the number of frames captured per second.
Key Thermal Features:
- Intrusion: Detects objects entering or leaving a defined area based on temperature changes.
- Region Entrance/Exiting: Monitors the movement of objects into or out of specific regions based on temperature variations.
- LCD: Liquid Crystal Display for real-time visualization of thermal images.
- Fire Detection: Identifies potential fire hazards based on heat signatures.
- Temperature Exception Alarm: Triggers an alarm when temperature readings exceed predefined thresholds.
Applications:
- Security: Perimeter surveillance, intrusion detection, facial recognition.
- Industrial: Process monitoring, quality control, hot spot detection.
- Military: Target acquisition, night vision, surveillance.
- Scientific Research: Thermal analysis, material testing.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤ 40 mk @ 25℃ F ＃ 1.0, 25Hz |
| Lens (Focal Length) | 3.2mm |
| IFOV | 3.75 mrad |
| Field of View | 56°x42° |
| Min. Focusing Distance | 0.3m |
| DRI Distance Human | Detection: 126m(413ft), Recognition: 32m(105ft), Identification: 21m(69ft) |
| DRI Distance Vehicle | Detection: 421m(1381ft), Recognition: 90m(295ft), Identification: 53m(174ft) |
| Heat Detection Distance | 20m(66ft) |
| Aperture | F 1.1 |
| Optical Module | |
| Max. Image Resolution | 5MP / 2592*1944 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 @IR ON |
| Shutter Speed | 1/5 s to 1/100,000 s |
| Lens (Focal Length) | 3.6mm |
| Field of View | Horizontal: 81°, Vertical: 57°, Diagonal: 108° |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Smart Function | |
| Intelligent Analytics | Optical: Intrusion, Region Entrance, Region Exiting, LCD, PD/VD, SOD, CC, CD, QD, Heat MAP, RSD, FD Thermal: Intrusion, Region Entrance, Region Exiting, LCD, Fire detection, temperature exception alarm |
| Temperature Measurement | Gobal, 12 points, 12 areas, and 12 line). |
| Temperature Range | -20 °C to + 150 °C (-4 °F to + 302°F) |
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
| Fire Detection | Yes |
| Illuminator | |
| Supplement Light Type | IR and Warm Light |
| Supplement Light Range | Up to 30 m (IR) / 15m (Warm light) |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Warning Light | 1 Red & 1Blue flashing light |
| Network | |
| Main-stream | Visible Light: 50Hz@25fps; 5MP (2592x1944),4MP (2592x1520),3MP (2304x1296),1080P(1920x1080), 960P(1280*960),720P(1280x720) 60Hz@30fps; 5MP (2592x1944),4MP (2592x1520),3MP (2304x1296),1080P(1920x1080), 960P(1280*960),720P(1280x720) Thermal: 50Hz/60Hz@25fps; 1280 × 720, 640 x 480 |
| Sub-stream | Visible Light: 50Hz@25fps; 720P(1280x720), VGA(640x480), QVGA(320x240) 60Hz@30fps; 720P(1280x720), VGA(640x480), QVGA(320x240) Thermal: 50Hz/60Hz@25fps; 640 x 480, 320x240 |
| Mobile Stream | Visible Light: 50Hz@25fps; VGA (640x480), QVGA(320x240) 60Hz@30fps; VGA (640x480), QVGA(320x240) |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.711u/G.711a |
| Protocols | TCP/IP, DHCP, DNS, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| User/Host Level | 10 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, IP address filtering |
| Integration | |
| Alarm Input | 1-ch inputs |
| Alarm Output | 1-ch outputs |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/Red & Blue flashing light |
| Audio Input | 1-ch |
| Audio Output | 1-ch outputs/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. |
| SD Memory Card | Built-in micro-SD card slot (up to 256 GB) |
| Analog Video Output (BNC) | NA |
| Web Browser | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| General | |
| Menu language | English, Russian, German, Italian, French, Portuguese, Spanish, Turkish, Japanese |
| Power | 12 VDC ± 20%, PoE (802.3af) |
| Working Temperature/Humidity | Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Humidity: 90% or less |
| Protection Level | IP67 |
| Environment | RoHS2.0 |
